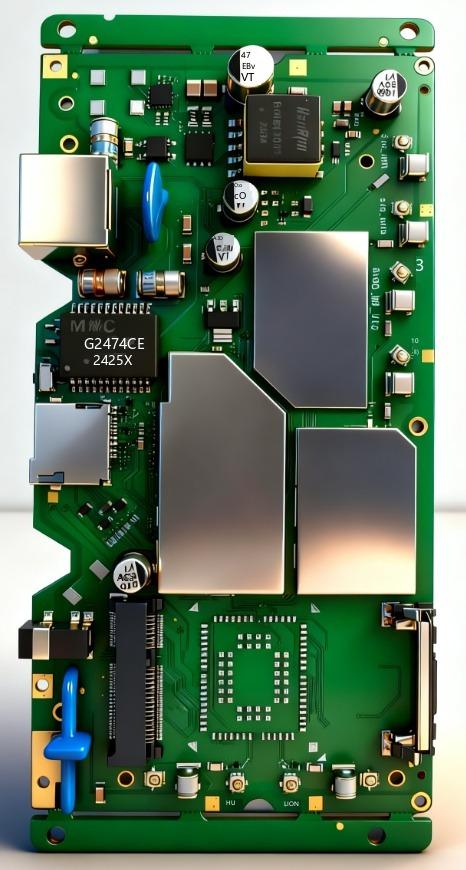

Industrial outdoor high-power router with IP67 protection and 6KV surge protection. MT7621AT platform with dual-band WiFi 5 (2T2R, 4 antennas), LTE CAT4 module, PoE PD support, and three-level mesh networking.
| Parameter | Specification |
|---|---|
| Platform | MT7621AT + MT7603EN + MT7613BEN |
| WiFi | WiFi 5, 2T2R, 4 antennas |
| 2.4GHz TX Power | 802.11b 11M: 27±1dBm |
| 5GHz TX Power | 802.11n HT40 MCS7: 23±1dBm |
| 2.4GHz RX Sens. | 802.11b 11M: -90dBm@8% PER |
| 5GHz RX Sens. | 802.11n HT20 MCS7: -75dBm@10% PER 802.11n HT40 MCS7: -73dBm@10% PER |
| MESH | Support, three-level mesh |
| 4G Module | LTE CAT4 |
| Ports | DC 4.4×1.6mm, SIM, RJ-45, TF Card |
| PoE | PD, IEEE 802.3af/802.3at (100m) |
| Protection | IP67 + 6KV surge |
| Temperature | Operating: -20°C~+70°C, Storage: -40°C~+85°C |
