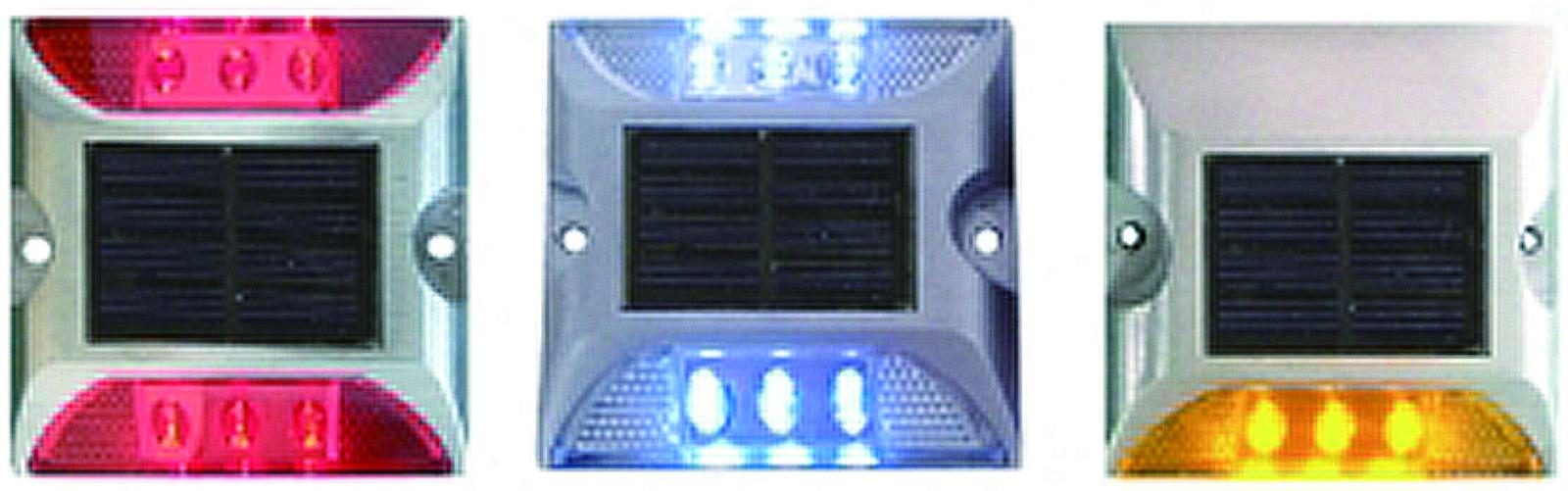

Comprehensive tunnel traffic guidance solution. PT-WSR100 tunnel guidance lights with ASA fire-retardant or cast aluminum housing, Φ5 LEDs ≥8000mcd with dimming. PT-YD400 dual-loop controller supporting up to 200 lights. PT-SR-6 solar road studs with IP68 rating, >20-ton static load, and 800m visibility.
| Parameter | PT-WSR100 | PT-YD400 | PT-SR-6 |
|---|---|---|---|
| Housing | ASA or cast aluminum | Carbon steel | Cast aluminum |
| Light/Power | Φ5 LED, ≥8000mcd | ≤300W, AC220V | Solar 0.3W/2W, 600mAh |
| Color | White/Red or White/Yellow | — | Red/Yellow/Blue/White/Green |
| Control | Manual/Program/PLC | Manual/Program/PLC(opt) | — |
| Display | Steady/Flash/Fade | Steady/Flash | Flash(90/min)/Steady |
| Protection | IP67 | IP65 | IP68, >20t load |
| Voltage | DC24V | AC220V 50Hz | 1.2V NiMH |
| MTBF/Life | ≥50,000h | ≥50,000h | >3 years |
| Dimensions | — | 380×290×100mm | 103×103×23mm, 330g |
| Temp | -40°C~+55°C | -40°C~+70°C | -20°C~+70°C |
